Required Space J-DRUM
These are required dimensions to install J-DRUM.
Choose the most suitable J-DRUM for the space.

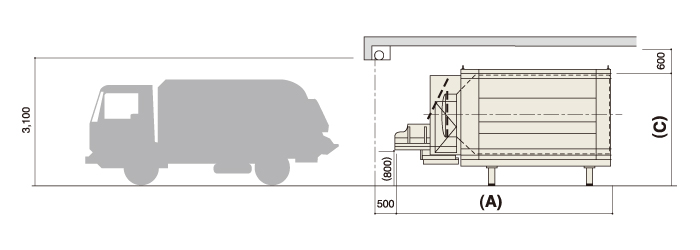

Standard Elevation View

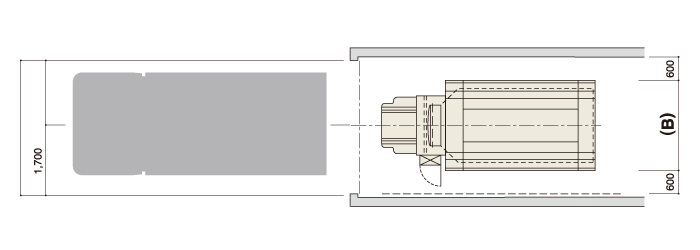

Standard Plan View
1.Manual Bucket Gate
1.Manual Bucket Gate

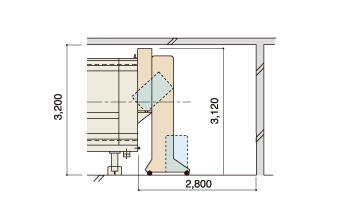

3.Automatic Bin Lifter & Turn Over System
4.Disposal Tube Type
5.Barrier-free correspondence fixed quantity type
Dimension
| #1 | 4000 | 6000 | 8000 | 10000 | 12000 | 14000 | 18000 |
|---|---|---|---|---|---|---|---|
| A | 3820 | 4750 | 4641 | 5372 | 6078 | 6758 | 8118 |
| B | 2000 | 2200 | |||||
| (C) | (2703) | (2853) | |||||
